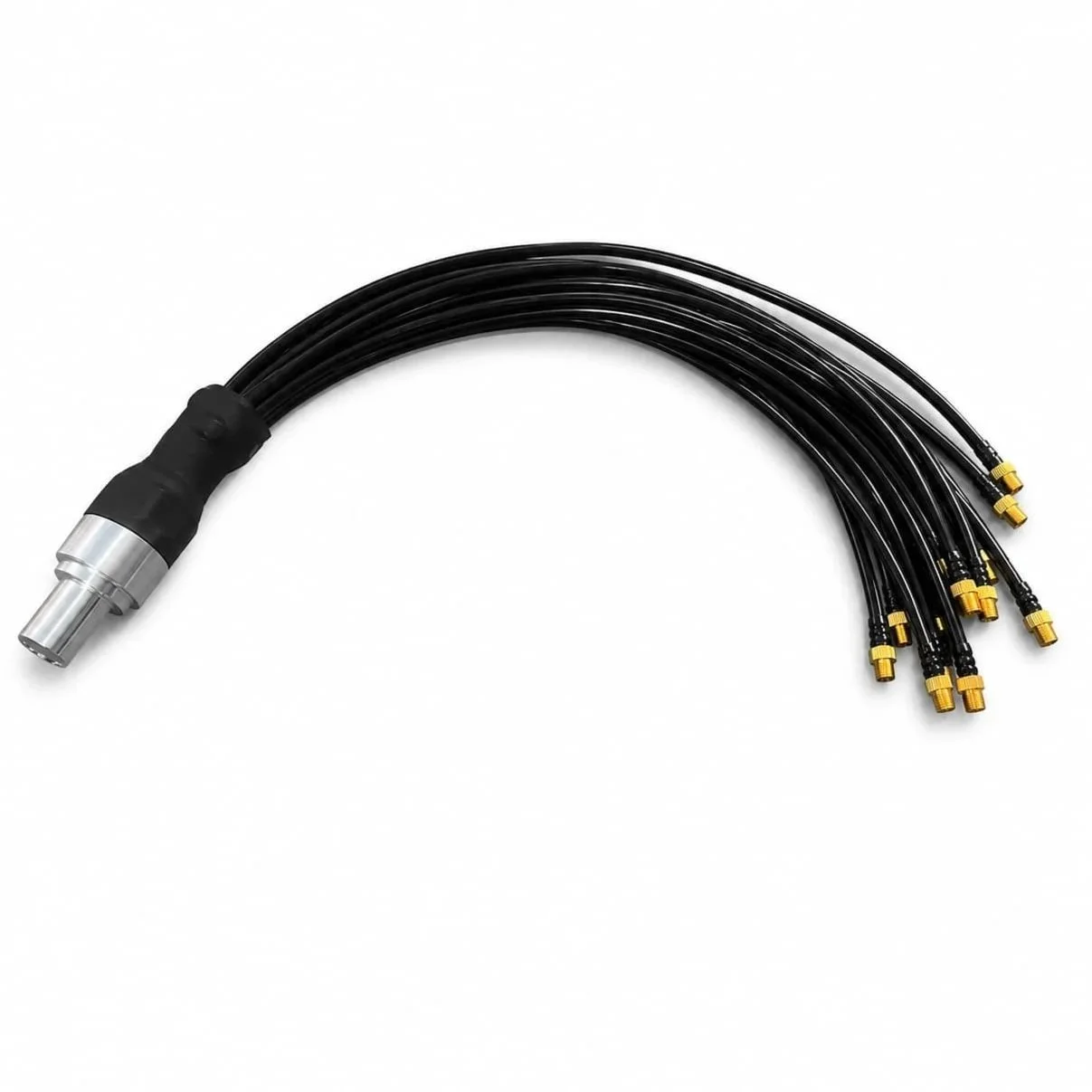

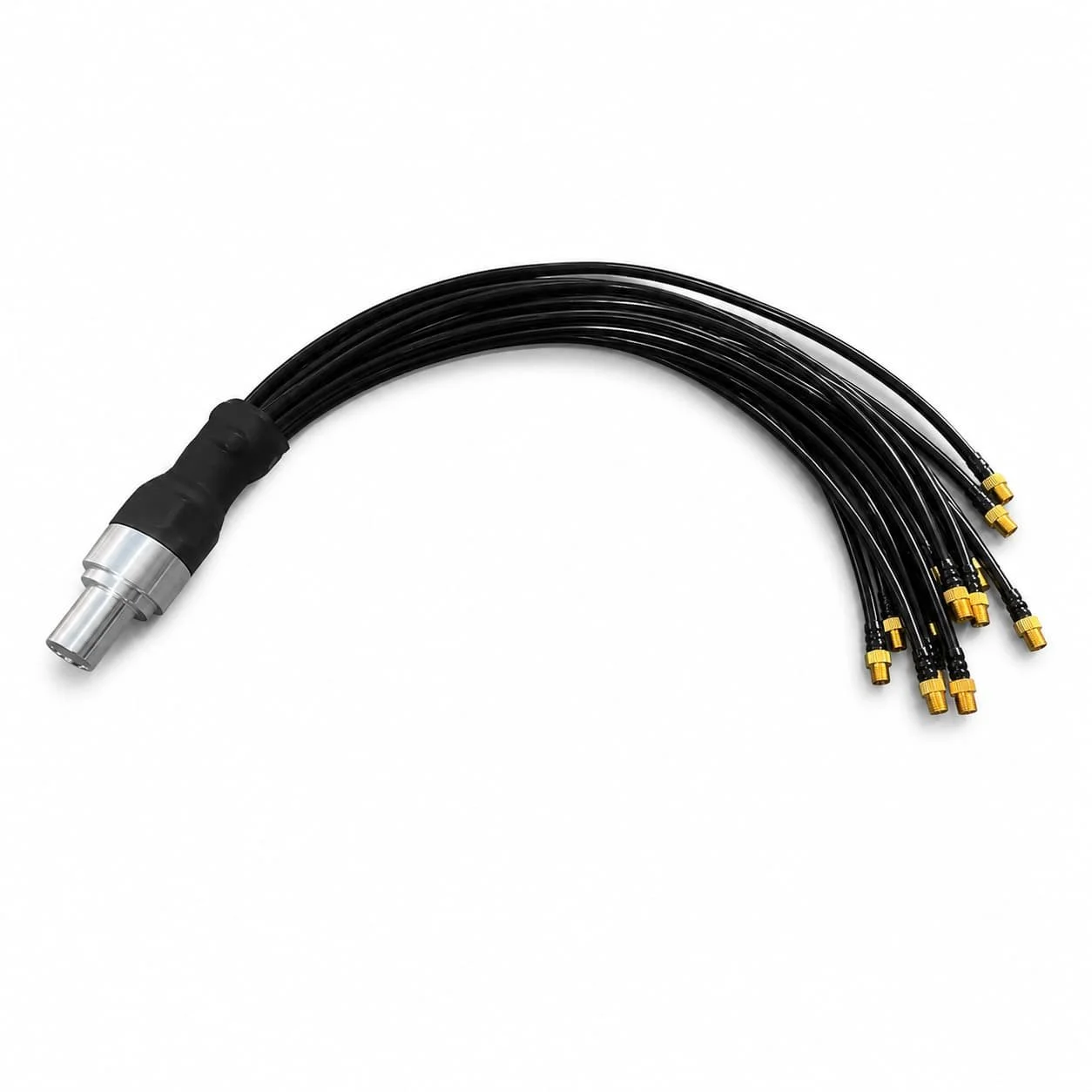

Hydra connector
Connects directly to the light engine’s light port
available in several port diameters so they can be used with various light engines:
18 mm, 20 mm, 29 mm, 30 mm

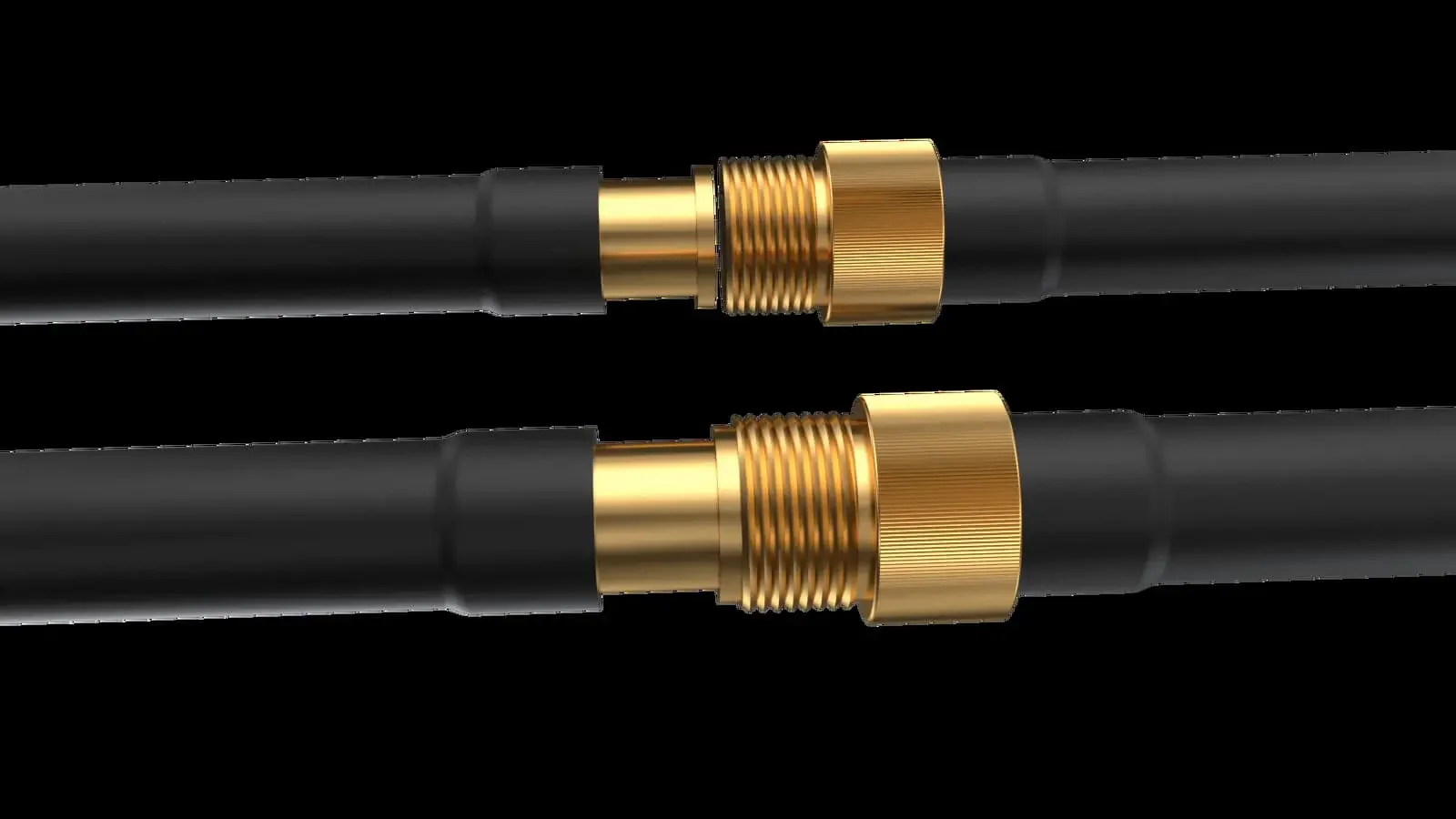

with 0.5 m PVC covered tails with male connector
The number of tails depends on the port diameter:
18 mm port connector: 23 connector tails (maximum number of star points: 437)
20 mm port connector: 28 connector tails (maximum number of star points: 532)
29 mm port connector: 55 connector tails (maximum number of star points: 1,045)
30 mm port connector: 65 connector tails (maximum number of star points: 1,235)
made-to-order only, allow 4 weeks for delivery
Details
FEATURES:

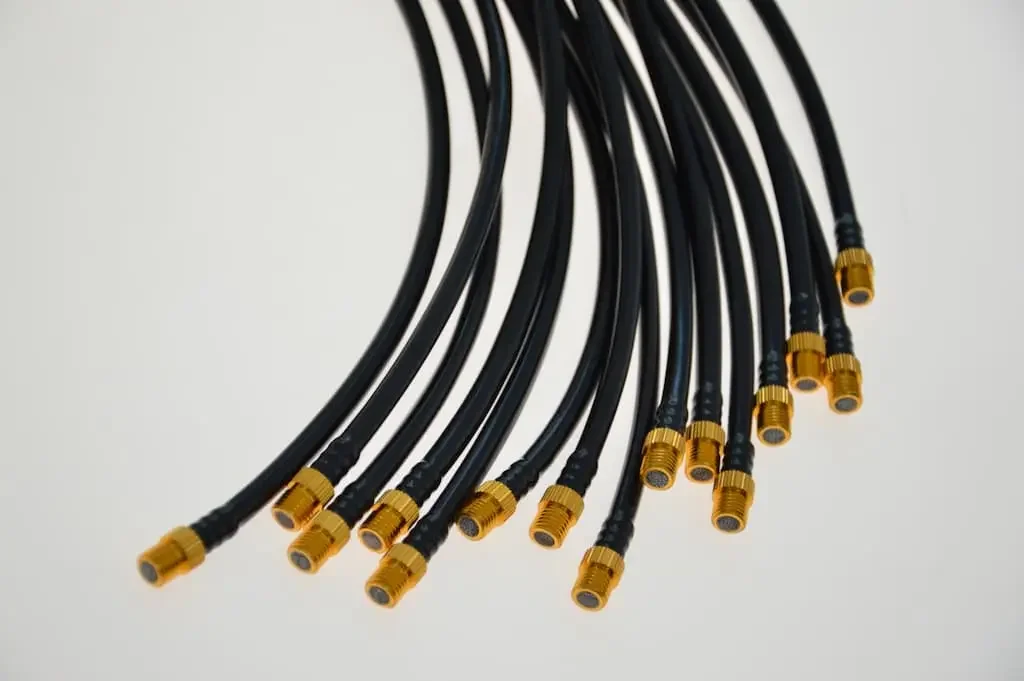

Light engine port connector with PVC covered tails (0.5 m)
Available in various port diameter options (18 mm, 20 mm, 29 mm, 30 mm)
The number of tails depends on the port diameter. The number of tails will determine how many end cables/star ceiling tiles you can connect to a single kit. If you require more star points, we recommend using DMX-enabled light engines so you can connect multiple modular fibre optic kits.
18 mm: 23 tails (max star points: 437)
20 mm: 28 tails (max star points: 532)
29 mm: 55 tails (max star points: 1,045)
30 mm: 65 tails (max star points: 1,235)
Made-to-order, approximately 4 week delivery time from order
DESCRIPTION
The modular fibre optic kit simplifies the starlight ceiling installation process so you don’t have to handle hundreds or thousands of independent optical fibres during the installation process. The optical fibres are covered with a PVC jacket and the kit compromises of three main components:
Hydra connector

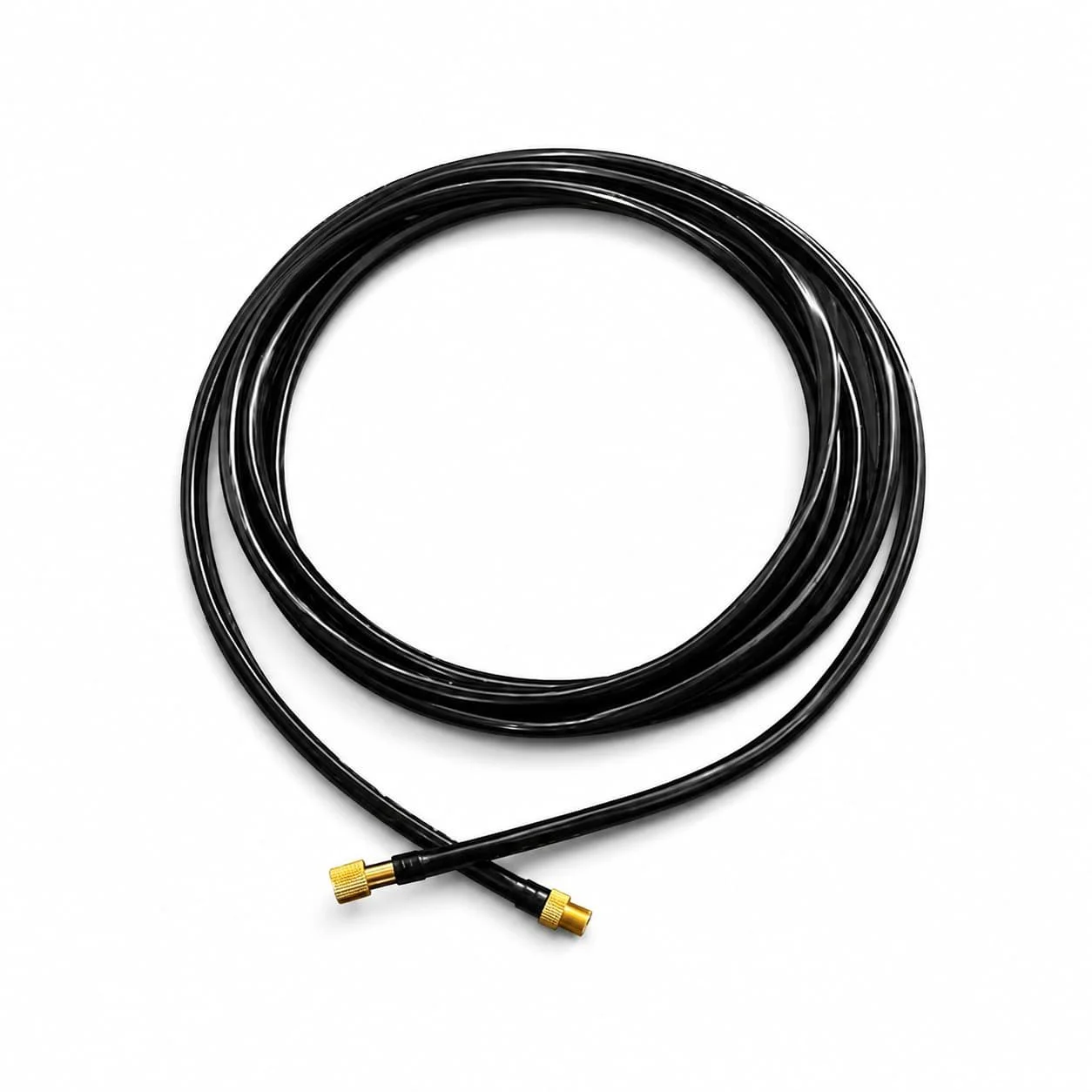

extension cable

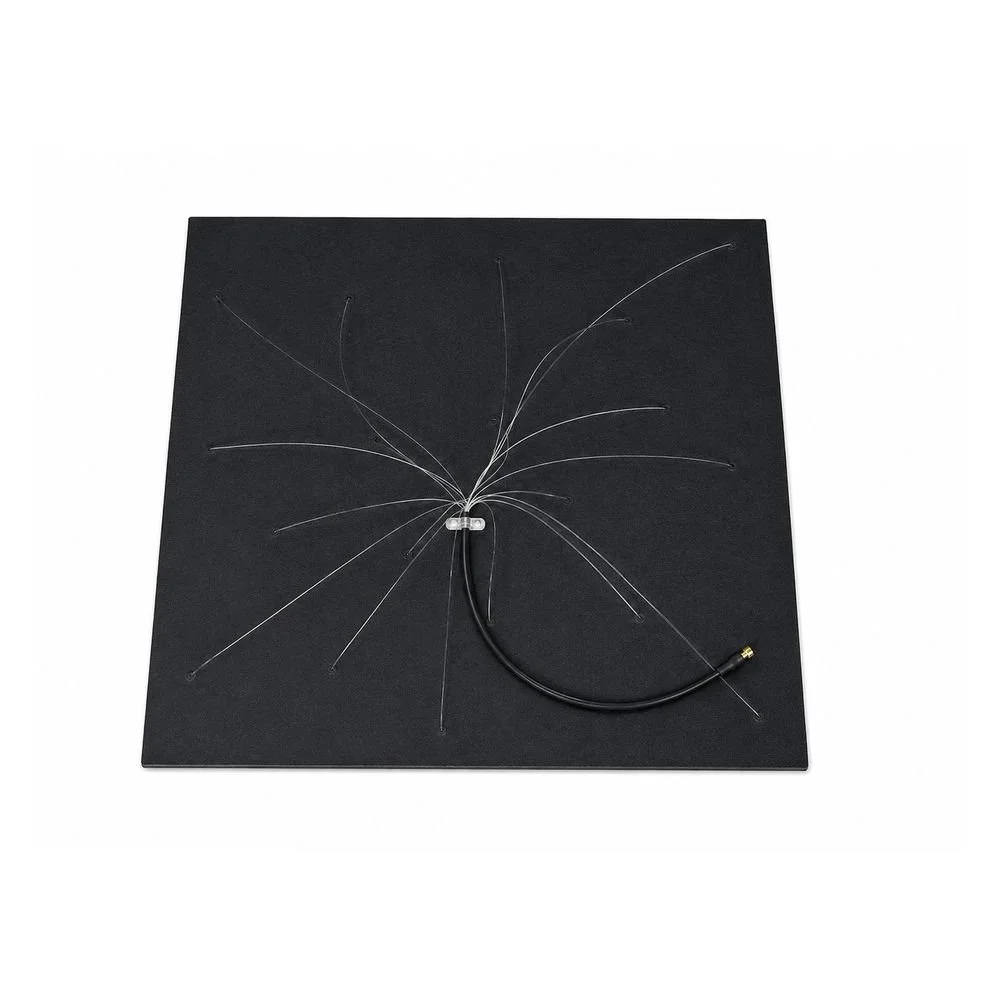

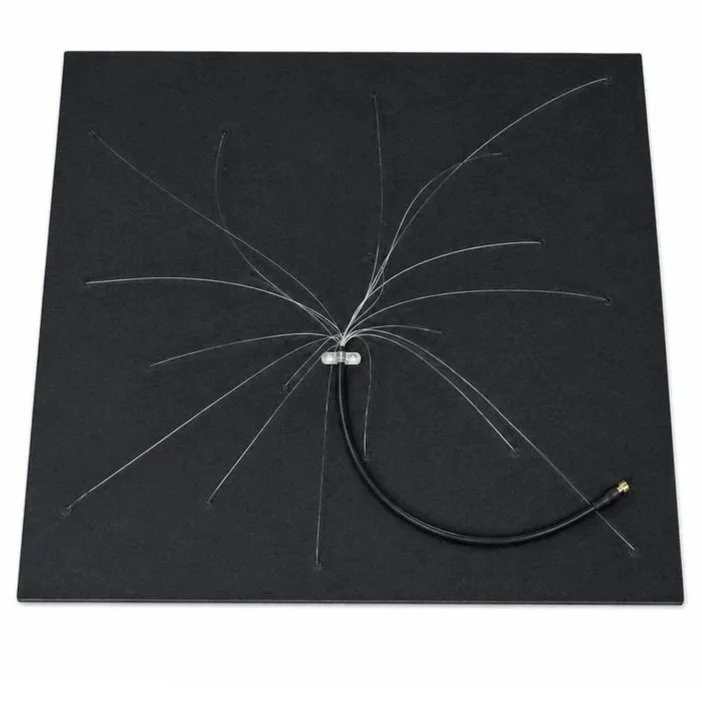

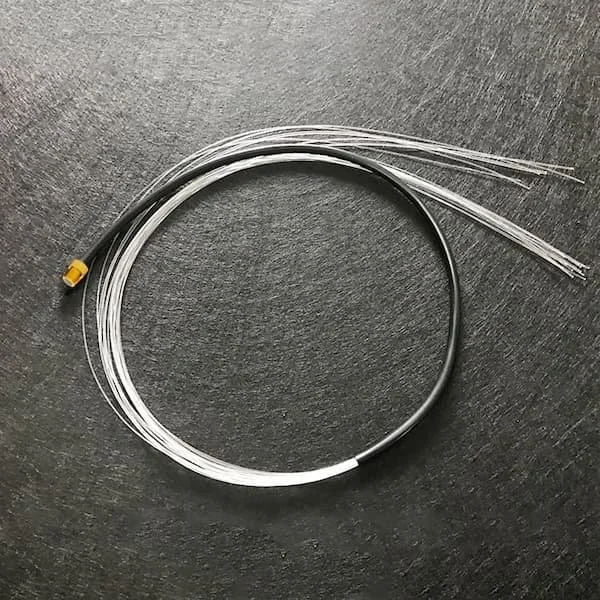

end cable / star ceiling tile
Compatible products
Modular fibre optic star ceiling components:
Compatible light engines
18 mm port diameter light engines
20 mm port diameter light engines
29 mm port diameter light engines
30 mm port diameter light engines
FAQs - Modular star ceiling kit
Coming soon…
Installation details
The ceiling tiles can be installed in three different ways:
drop-in tiles with a suspended tee bar grid
secured to a metallic grid with magnets
nailed to a wooden frame structure
Adding spotlights or ceiling lamps
The ceiling tiles can be cut easily to accommodate ceiling features, such as spotlights, ceiling lamps, speakers and smoke detectors.
